Practical Forecasting Issues

Modified

March 29, 2026

Code
1library(plotly)
1
In addition to the regular packages, we use plotly for interactive graphics.

1 Outliers

What do you observe in this series? Think about trend, seasonality, variance — and anything else that catches your eye.

1.1 What do we do with outliers?

  • In cross-sectional data, a common reaction is to remove outliers before modeling.
  • That intuition is reasonable — but in time series, simply deleting an observation creates a new problem: a gap in the timeline.
  • Time series models depend on the temporal ordering and regularity of observations. A missing period is not the same as a removed row.

In time series, removing an outlier and leaving a gap is not a solution — it creates a missing value problem that must also be addressed.

1.2 Why not apply the IQR rule directly to the series?

In cross-sectional data, outlier detection often works directly on the raw values:

\text{outlier if } y < Q_1 - 1.5 \cdot \text{IQR} \quad \text{or} \quad y > Q_3 + 1.5 \cdot \text{IQR}

  • In time series, this does not work — and the reason is trend.
  • A series with an upward trend has values that naturally increase over time. Later observations will always appear “large” relative to the overall distribution — not because they are anomalous, but because the series has grown.
  • Applying the IQR rule directly would flag perfectly normal observations at the end of a trending series as outliers.
TipThe fix: decompose first, then inspect the remainder

By removing the trend before applying the IQR rule, we isolate the variation that cannot be explained by the regular structure of the series. Only then does outlier detection make sense.

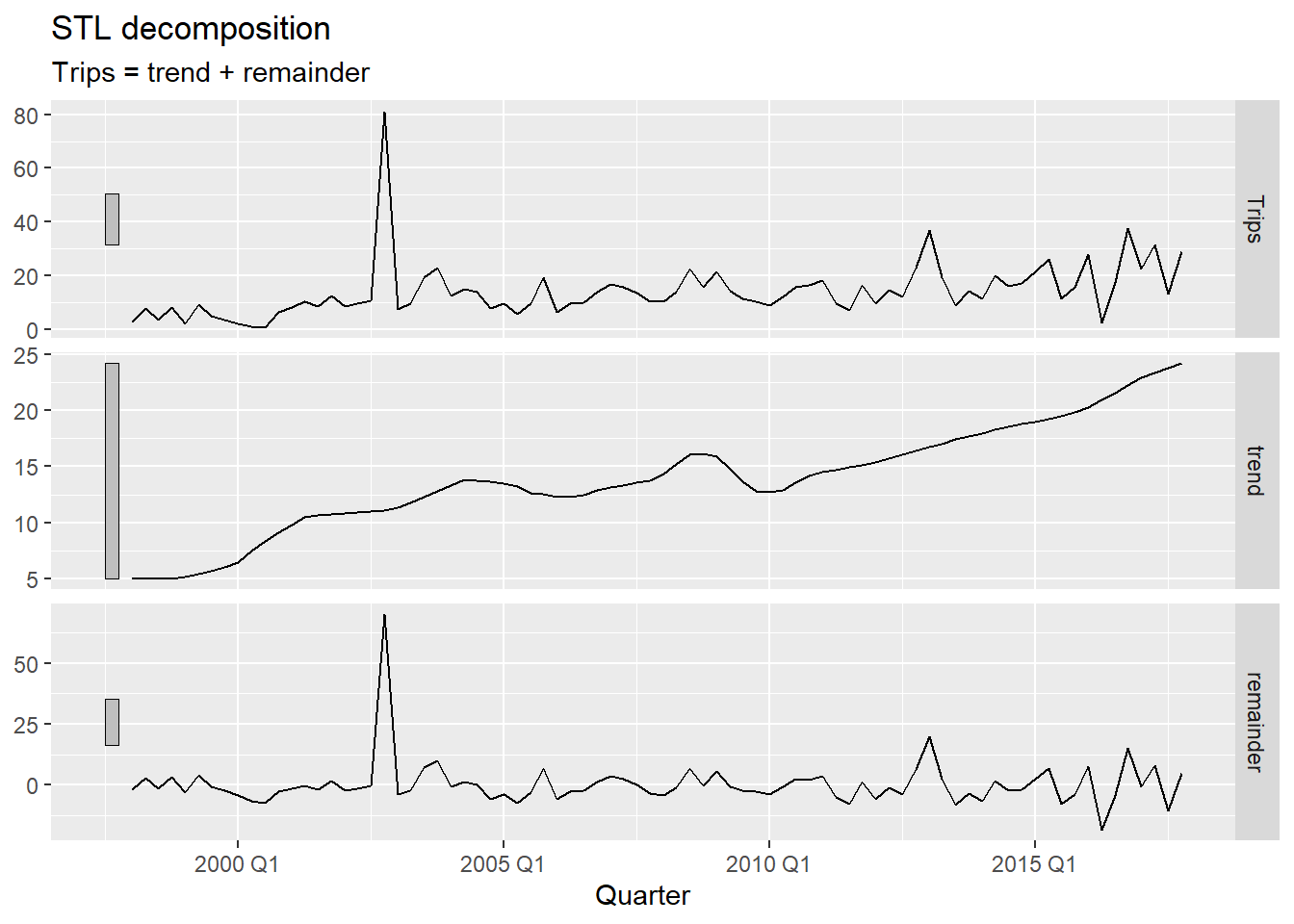

1.3 Formally identifying outliers via STL

1.3.1 Using the remainder component

We decompose the series with STL using season(period = 1) to remove only the trend — keeping seasonality in the remainder so it is not mistaken for an anomaly1. We then apply the IQR rule to the remainder:

\text{outlier if } R_t < Q_1 - c \cdot \text{IQR} \quad \text{or} \quad R_t > Q_3 + c \cdot \text{IQR}

where c = 1.5 is the standard threshold and c = 3 flags only more extreme observations.

Code
ah_dcmp <- ah |>
  model(
1    stl = STL(Trips ~ season(period = 1), robust = TRUE)
  ) |>
  components()

ah_dcmp |> autoplot()
1
season(period = 1) fits a non-seasonal STL — only the trend is extracted. This ensures the remainder reflects true anomalies and seasonal variation together, rather than having a genuine outlier absorbed into the seasonal component.

Code
1c_threshold <- 1.5

ah_outliers <- ah_dcmp |>
  filter(
    remainder < quantile(remainder, 0.25) - c_threshold * IQR(remainder) |
    remainder > quantile(remainder, 0.75) + c_threshold * IQR(remainder)
  )

ah_outliers
1
Changing c_threshold to 3 makes detection stricter — only more extreme remainders are flagged. Start with 1.5 and increase if too many periods are flagged.

The value c = 1.5 is the standard Tukey fence used in boxplots — it flags observations that are moderately unusual. A value of c = 3 (the “far fence”) is more conservative and only captures truly extreme values. In practice, start with 1.5, inspect the flagged periods, and tighten the threshold if normal variation is being flagged.

1.3.2 What happens when we remove them?

Code
ah_miss <- ah |>
1  anti_join(ah_outliers, by = "Quarter") |>
2  fill_gaps()

ah_miss
1
anti_join() removes the flagged periods from the original data.
2
fill_gaps() makes the missing periods explicit — they now appear as NA rows in the tsibble rather than simply not existing.

We removed the outlier — but now there is a gap. The model still needs a value for that period.

2 Missing Values

We have gaps. What do we do with them?

Some approaches that might seem right at first — but do not hold up under scrutiny:

  • Use the mean of the series → ignores trend and seasonality entirely
  • Use the previous value → that is NAIVE — reasonable, but ignores all future information
  • Use the same period last year → that is SNAIVE — better, but still mechanical
  • Average the neighboring values → which neighbors? How many? Sensitive to local anomalies, ignores global structure

All of these are simplified versions of models we have already studied. Can we do something more principled — something that uses the full structure of the series, including trend, seasonality, and autocorrelation?

2.0.1 Why not ETS?

A natural next suggestion: fit an ETS model to the available data and use it to fill the gaps.

The problem: ETS cannot be estimated when the series contains NA values.

ETS is built on weighted averages of all past observations:

\hat{y}_{t} = \alpha y_{t-1} + \alpha(1-\alpha) y_{t-2} + \alpha(1-\alpha)^2 y_{t-3} + \cdots

If any y_t is NA, every weighted sum that includes it becomes NA — and the entire estimation collapses.

Code
1mean(c(10, 20, NA, 40))
210 + NA
1
mean() with a missing value returns NA — the average is undefined when one element is unknown.
2
Any arithmetic involving NA propagates the missingness. ETS, as a chain of weighted sums over all observations, fails entirely if any single observation is missing.
[1] NA
[1] NA

2.0.2 ARIMA and interpolation

ARIMA models can handle missing values. They use a state-space representation where the likelihood is computed period by period — missing observations are skipped in the likelihood update, and the state is propagated forward without an observation.

The workflow:

  1. Fit an ARIMA model to the series containing NA values
  2. Use interpolate() to replace each NA with the model’s conditional expectation for that period
Code
ah_fill <- ah_miss |>
1  model(ARIMA(Trips)) |>
2  interpolate(ah_miss)
1
ARIMA is fitted using all non-missing observations. The NA periods do not contribute to parameter estimation but are accounted for in the state propagation.
2
interpolate() replaces each NA with the in-sample conditional expectation — the most likely value for that period given the surrounding data and the estimated model.

2.0.3 Comparing original, missing, and imputed values

Code
ah |>
  rename(Trips_original = Trips) |>
  left_join(
    ah_miss |> rename(Trips_na      = Trips), by = "Quarter"
  ) |>
  left_join(
    ah_fill |> rename(Trips_imputed = Trips), by = "Quarter"
  ) |>
1  filter(Quarter %in% ah_outliers$Quarter)
1
Filter to show only the flagged periods, making the comparison between original, missing, and imputed values immediately clear.
  1. Extract the imputed periods as a separate tibble for targeted highlighting — avoids the rendering issue that occurs when autolayer tries to draw a line segment over only 2–3 isolated points.
  2. geom_point() with a diamond shape (shape = 18) marks each imputed period clearly and reliably, regardless of how many periods were flagged.
  3. geom_label() shows the imputed value directly on the plot.
TipImpact on forecasts

A model trained on data that includes the anomalous observation will produce different — and usually worse — forecasts than one trained on the cleaned series. The outlier inflates variance estimates and can distort trend and seasonal parameter estimates, leading to wider and less accurate prediction intervals.

3 Keeping Forecasts Positive

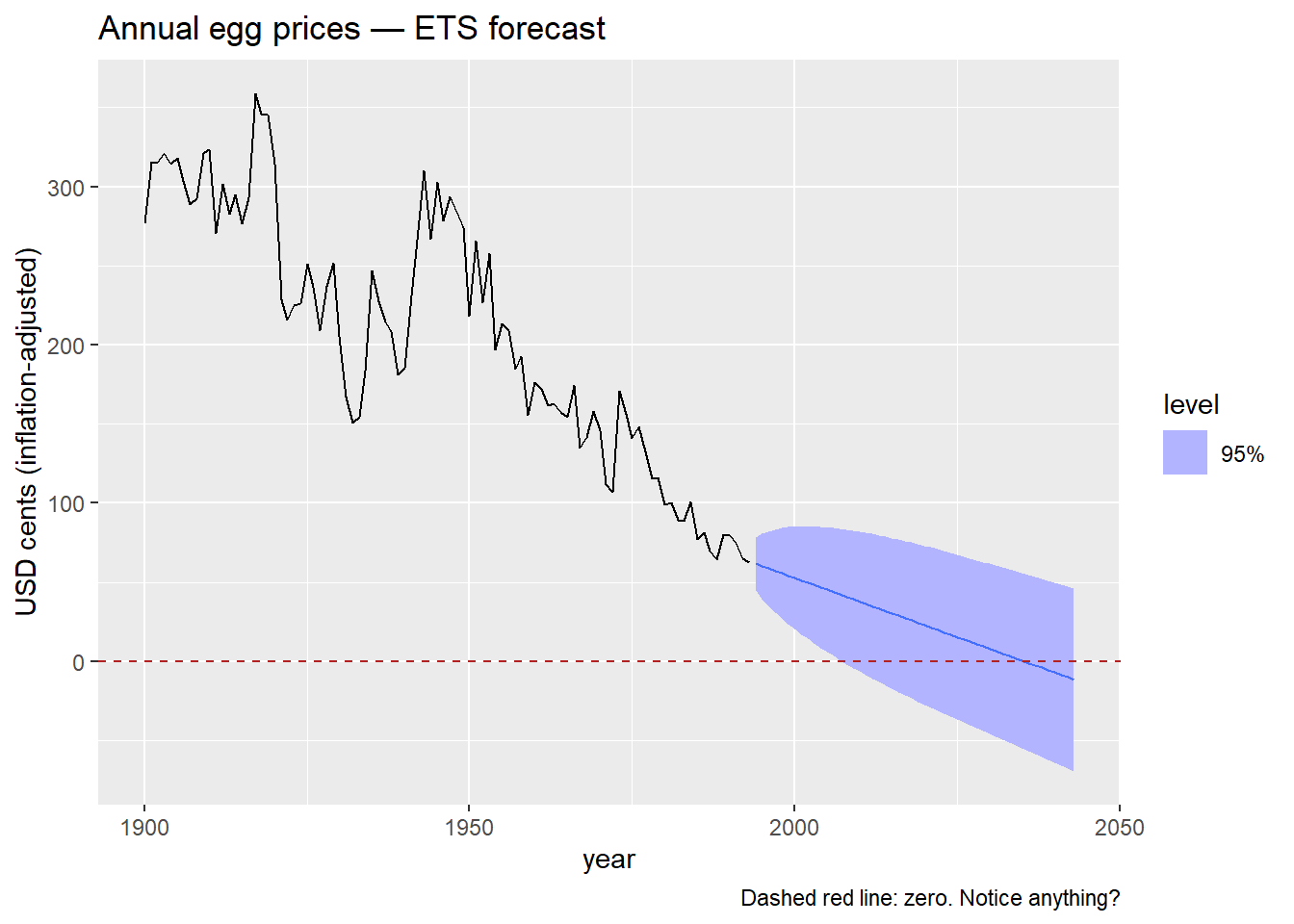

What do you observe? Does anything look strange about those prediction intervals?

  • The prediction intervals extend below zero.
  • A negative egg price has no real-world interpretation — prices cannot be negative.
  • The model does not know this. It fits a linear trend and extrapolates symmetrically in both directions.
  • This is not a bug — it is a consequence of a modeling choice we have not made yet.

What mathematical transformation do you know that forces all output values to be strictly positive?

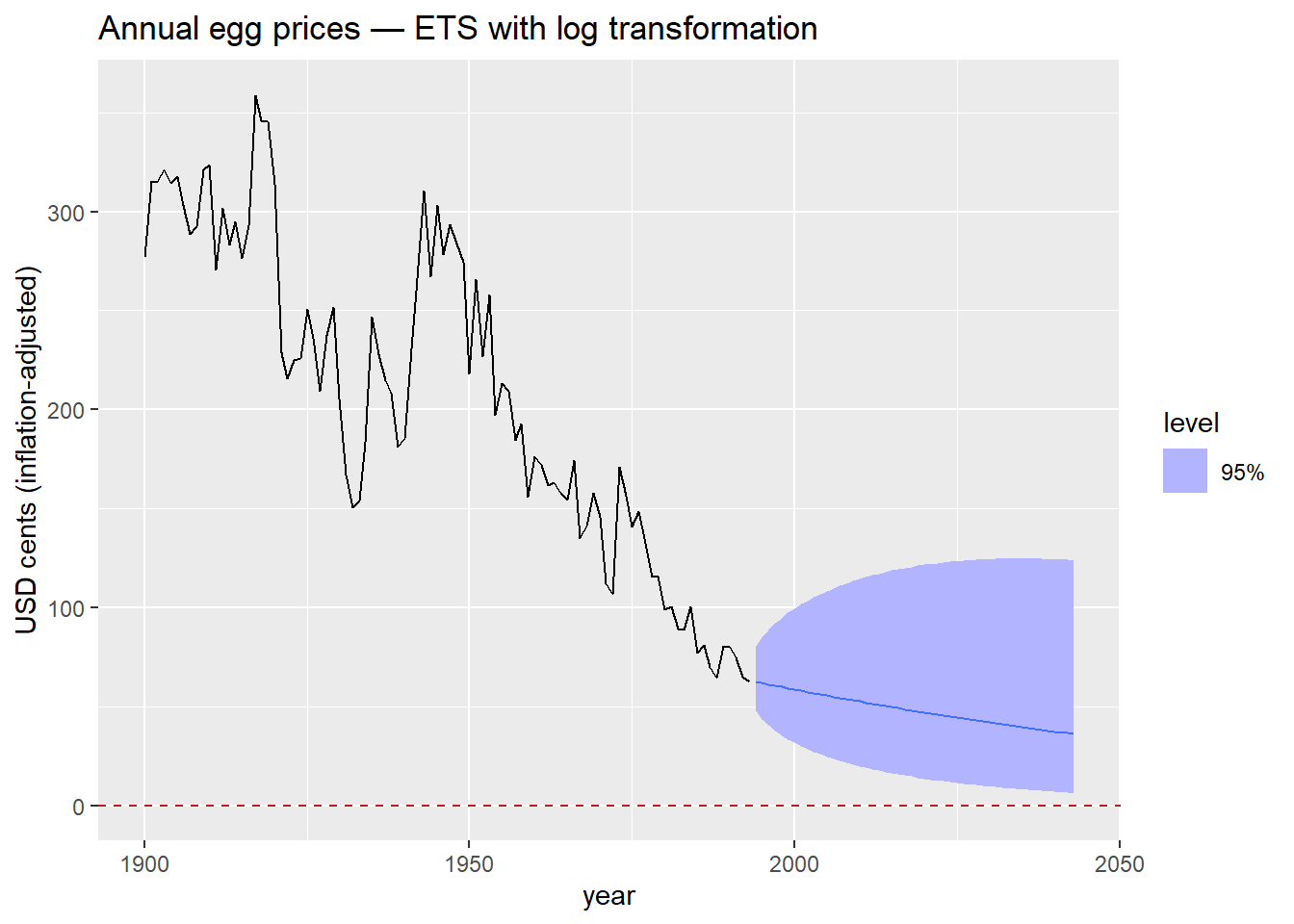

3.0.1 The log transformation

  • \log(y_t) is defined only for y_t > 0, and \log(y_t) \to -\infty as y_t \to 0^+.
  • When we model \log(y_t) and back-transform with \exp(\cdot), the result is always strictly positive — regardless of how far the trend extrapolates downward.
  • We saw this in Module 1 with Box-Cox transformations (the \lambda = 0 case). Here we use it explicitly as a forecasting constraint.
Code
egg_prices |>
1  model(ETS(log(eggs) ~ trend("A"))) |>
  forecast(h = 50) |>
  autoplot(egg_prices, level = 95) +
  geom_hline(yintercept = 0, color = "firebrick", linetype = "dashed") +
  labs(
    title   = "Annual egg prices — ETS with log transformation",
    y       = "USD cents (inflation-adjusted)"
  )
1
The only change is wrapping eggs in log(). fable handles the back-transformation automatically — forecasts and prediction intervals are returned on the original scale.

The log transformation is the simplest way to keep forecasts positive. It works well when the series is strictly positive and the variance grows with the level — both common features of price and volume data.

4 Keeping Forecasts within Bounds

The log transformation handles a lower bound of zero. But what if we need to constrain forecasts between two finite values [a, b]?

Proportions and rates:

  • Hotel or airline occupancy rate (0%–100%)
  • Market share of a product in a category (0%–100%)
  • Unemployment rate — bounded below at 0%, practically bounded above

Physical systems:

  • Water level in a dam or reservoir — bounded between 0 m (empty) and maximum storage capacity. Particularly relevant in Mexico, where reservoir levels drive water supply and hydroelectric generation decisions.
  • Temperature in an industrial process — operating outside the allowed range causes product defects or safety incidents.
  • Battery state of charge (0%–100%)

Financial and regulatory:

  • Benchmark interest rate — central banks operate within policy corridors; forecasts outside those bounds are not credible.
  • Loan-to-value ratio on a mortgage portfolio — bounded by regulation.
  • Credit utilization rate on a consumer loan portfolio (0%–100%)

4.0.1 The scaled logit transformation

The scaled logit maps any value in (a, b) to the entire real line (-\infty, +\infty):

f(x) = \log\left(\frac{x - a}{b - x}\right)

The inverse — used to back-transform forecasts to the original scale — is:

f^{-1}(y) = \frac{(b - a)\, e^y}{1 + e^y} + a

This guarantees that back-transformed forecasts always lie strictly within (a, b).

The standard logistic (sigmoid) function maps \mathbb{R} \to (0, 1):

\sigma(y) = \frac{e^y}{1 + e^y}

The scaled logit is a linear rescaling of this to the interval (a, b). The same structure appears in logistic regression, neural network activation functions, and ecological population models with a carrying capacity.

Code
1scaled_logit <- function(x, lower = 0, upper = 1) {
  log((x - lower) / (upper - x))
}

2inv_scaled_logit <- function(x, lower = 0, upper = 1) {
  (upper - lower) * exp(x) / (1 + exp(x)) + lower
}

3my_scaled_logit <- new_transformation(
  scaled_logit,
  inv_scaled_logit
)
1
Forward transformation: maps (a, b) \to \mathbb{R}. Applied to the data before model fitting.
2
Inverse transformation: maps \mathbb{R} \to (a, b). Applied automatically by fable when back-transforming forecasts and prediction intervals.
3
new_transformation() bundles both functions into a single transformation object that fable recognizes.

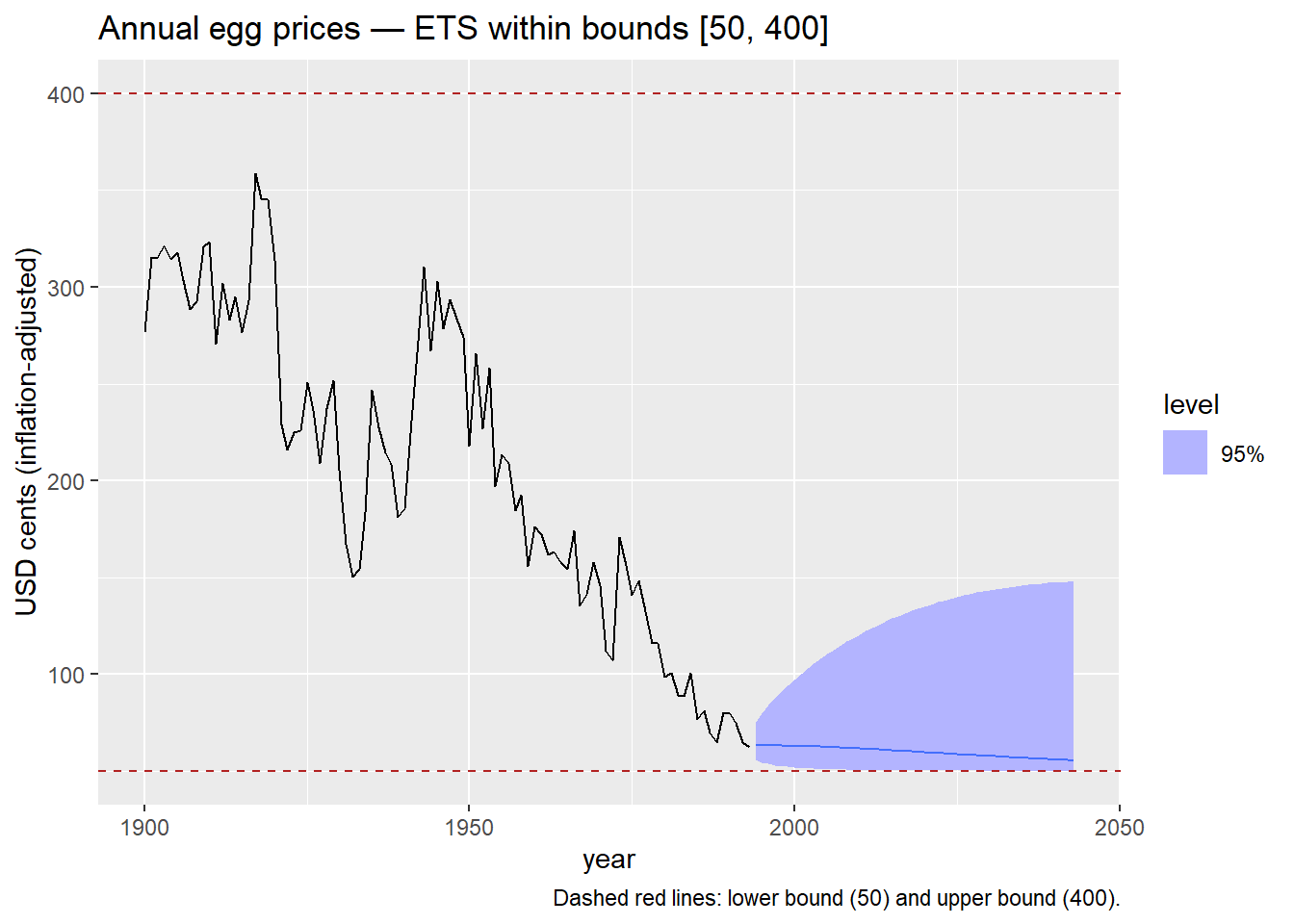

4.0.2 Applying the scaled logit

Code
egg_prices |>
  model(
1    ETS(my_scaled_logit(eggs, lower = 50, upper = 400) ~ trend("A"))
  ) |>
  forecast(h = 50) |>
  autoplot(egg_prices, level = 95) +
  geom_hline(yintercept =  50, color = "firebrick", linetype = "dashed") +
  geom_hline(yintercept = 400, color = "firebrick", linetype = "dashed") +
  labs(
    title   = "Annual egg prices — ETS within bounds [50, 400]",
    y       = "USD cents (inflation-adjusted)",
    caption = "Dashed red lines: lower bound (50) and upper bound (400)."
  )
1
The bounds lower = 50 and upper = 400 reflect a plausible range for egg prices in this dataset. In practice, bounds should be informed by domain knowledge or regulatory constraints — not chosen to make the plot look neat.

The scaled logit requires that all historical observations fall strictly within (a, b). If any observation equals or exceeds the bounds, the transformation is undefined. Always verify your data range before applying it.

5 Summary

  • Outliers in time series cannot be identified by applying the IQR rule to the raw series — trend distorts the distribution. Decompose first, then inspect the remainder component.
  • Removing an outlier creates a missing value that must be addressed. Simply deleting the row leaves a gap that most time series models cannot handle.
  • ARIMA interpolation provides a principled, model-based imputation that respects the full structure of the series — trend, seasonality, and autocorrelation.
  • Log transformations prevent forecasts from going negative — appropriate for prices, counts, and volumes.
  • Scaled logit transformations constrain forecasts to any finite interval (a, b) — use them when domain knowledge or regulation defines hard bounds.
ImportantKey principle

These are not just data-cleaning steps. They are modeling decisions that affect forecast distributions, prediction intervals, and the interpretability of results. Make them deliberately and document your reasoning.

Back to top

Footnotes

  1. If you suspect outliers are hiding inside the seasonal pattern, you can use a full seasonal decomposition instead.↩︎
